Junpu 1550nm 4 Port Amplifier Catv Optical Each Output 16dbm 1U Rack

Description:

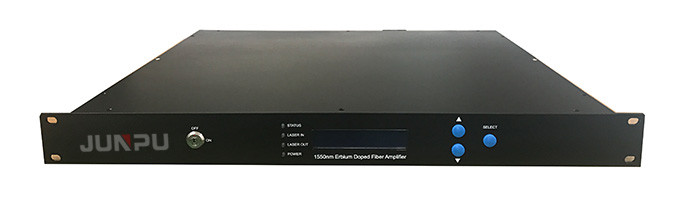

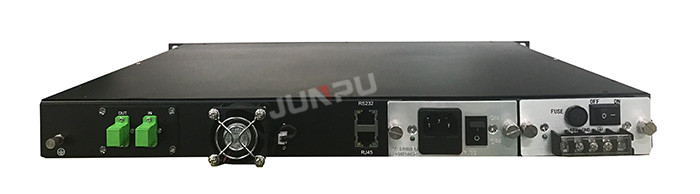

• JP0416EA optical amplifier adopts the world's top class pump laser and active optical fiber. Perfect APC, ACC and ATC control, excellent design in the ventilation and heat-dissipation ensure the long life and high reliable work of pump laser. JP0819EA LCD at the front panel offers the work index of all equipment and warning alarms. The laser will switch off automatically if optical power is missing, which offers security protection for the laser.RS232 and RJ45 offer serial commutation and SNMP network management port. All the optical port of optical amplifier can be installed in the front panel or back panel.

• JP0416EA(1RU) series is a high power multi-ports optical amplifier with gain spectrum band within 1540~1563nm. It is mainly designed for the application of CATV. It offers a flexible and low-cost solution for CATV large area coverage of metropolises and medium-sized cities.


Product Features:

• Total output power optional 500~10000mW(27~40dBm)
• 19’’ 1RU rack, optional output port up to 64 optional port.
• Built-in low noise pre-amplifier, not necessary EDFA cascade, extremely lower the CNR, MER degradation of the system
• Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB )
• Perfect RS232, SNMP
• Telecom level safety reliability and network management.
• Simplified machine-room links, improve the system reliability.
• Simple and reliable in construction/maintenance
• Optional dual optical input, built-in 2 × 1 optical switch
• Dual power supply optional, 1+1 backup
• Can reduce the 98% device space usage
• Can reduce the 85% device purchase cost
• Can reduce 95% power consumption
• The best cost performance in industry.

Details:

Technical Specification:

WorkShop:

Other 1550nm CATV EDFA Series:

We sincerely invite you to send us enquiry for further details.
