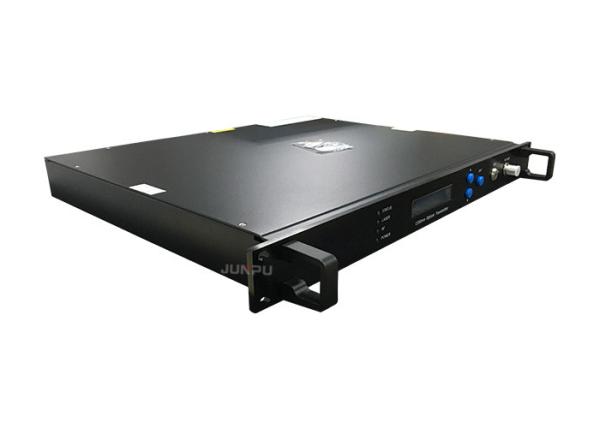

Junpu 1550nm Optical Amplifier, Optical Transmitter Module For Ftth SC APC

Description:

• Optical Transmitter adopts high-linearity butterfly DFB laser which is directly modulated to transmit 47-862MHz and 960~2600MHz signal in a single fiber.

• Optical transmitters can choose ITU standard wavelength for the WDM system to extend and update the networks. It can be amplified by EDFA and EYDFA for huge FTTH systems. It can be compatible with any FTTx PON technology to realize the combination of CATV, DVB-S, Internet, and FTTH.

• The optical Transmitter adopts 19” standard rack, the parameters of the machine are controlled by a microprocessor, and the status and fault alarm is displayed by the LCD in the front panel. Standard RJ 45 supports SNMP management. The built-in laser APC and ATC control circuit assures the long life of the laser and reliable work.

Product Feature:

• Adopt low-noise imported DFB laser.
• Superior pre-distortion circuit design, in achieving high standards of CNR value, there is still perfect CTB and CSO performance values.
• Intelligent fan, it began to run when the chassis temperature reaches the set 32 ~ 35 ℃.
• AGC control, so that different RF input levels can still maintain a considerable output performance.
• VFD or LED display, with laser monitoring, digital display, fault alarm, network management, and other functions; once the laser operating parameters deviate from the software set the allowable range, will alert.
• With standard RS232 interface for local network management and monitoring of computers.
• With standard RJ45 interface support SNMP for remote monitoring.
• The high-quality switching power supply can be 90V ~ 265V AC or -48V DC work.
• Single input with frequency 47～2600MHz.
• CATV and SAT-IF signals can be transmitted in a single fiber
• It can be amplified by EDFA and EYDFA, compatible with any FTTX PON technology

Details:

Technical Specification:

Workshop:

Other Related Products Series:

We sincerely invite you to send us an inquiry for further details.
