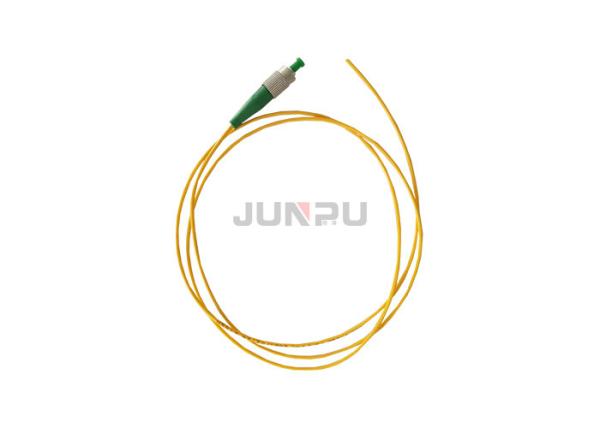

    FC APC Simplex Fiber Optic Patch Cord, fiber optic pigtail, fiber patch cord

    Ask Lasest Price
    Brand Name : JUNPU or OEM
    Model Number : FC PC Fiber Pigtail Optic Patch Cord Simplex Yellow 3.0mm
    Certification : ROHS CE CCC
    Price : Negotiation
    Payment Terms : T/T, Western Union, Credit Card Via Alibaba
    Supply Ability : 100000 pieces per week
    Delivery Time : 1 ~ 10 Working days based on quantity
    • Product Details
    • Company Profile

    FC APC Simplex Fiber Optic Patch Cord, fiber optic pigtail, fiber patch cord

    FC APC Simplex Fiber Optic Patch Cord, Fiber Optic Pigtail, Fiber Patch Cord


    Packing:

    With years of export experience along with excellent quality, advanced services, and competitive prices, we have won numerous customers' trust and support.


    Features:


    1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available;
    2. Superior qualified standard PC, APC, UPC, and SPC polishing;
    3. φ0.9mm, φ2.0mm, φ3.0mm cable optional;
    4. Single mode (9125) or multi-mode (50/125 or 62.5/125) fiber available;
    5. Available in fiber bunch, ribbon fan-out, and pigtail available;
    6. Simplex and duplex connectors available;
    7. Low IL and High RL;
    8. Good exchange ability and good durability;
    9. Customized specifications are welcomed.


    Performance Index

    ItemSM(Single Mode)MM(Multimode)
    Fiber Cable TypeG652D/G655/G657A1/G657A2OM1OM2/OM3/OM4
    Fiber Diameter (um)9/12562.5/12550/125
    Cable OD (mm)0.9/1.6/1.8/2.0/2.4/3.0
    Endface TypePCUPCAPCUPCUPC
    Typical Insertion Loss (dB)<0.2<0.15<0.2<0.1<0.1
    Return Loss (dB)>45>50>60/
    Insert-pull Test (dB)<0.2<0.3<0.15
    Interchangeability (dB)<0.1<0.15<0.1
    Anti-tensile Force (N)>70
    Temperature Range (℃)-40~+80

    FC APC Simplex Fiber Optic Patch Cord, fiber optic pigtail, fiber patch cord

    FC APC Simplex Fiber Optic Patch Cord, fiber optic pigtail, fiber patch cord
