    SC APC Type Optical Quick Assembly Connector For FTTH Fast Connector

    Ask Lasest Price
    Brand Name : JUNPU
    Model Number : Fiber Optic Connector
    Certification : ROHS CE CCC
    Price : Negotiation
    Payment Terms : T/T, Western Union, Credit Card Via Alibaba
    Delivery Time : 1 ~ 10 Working days based on quantity
    • Product Details
    • Company Profile

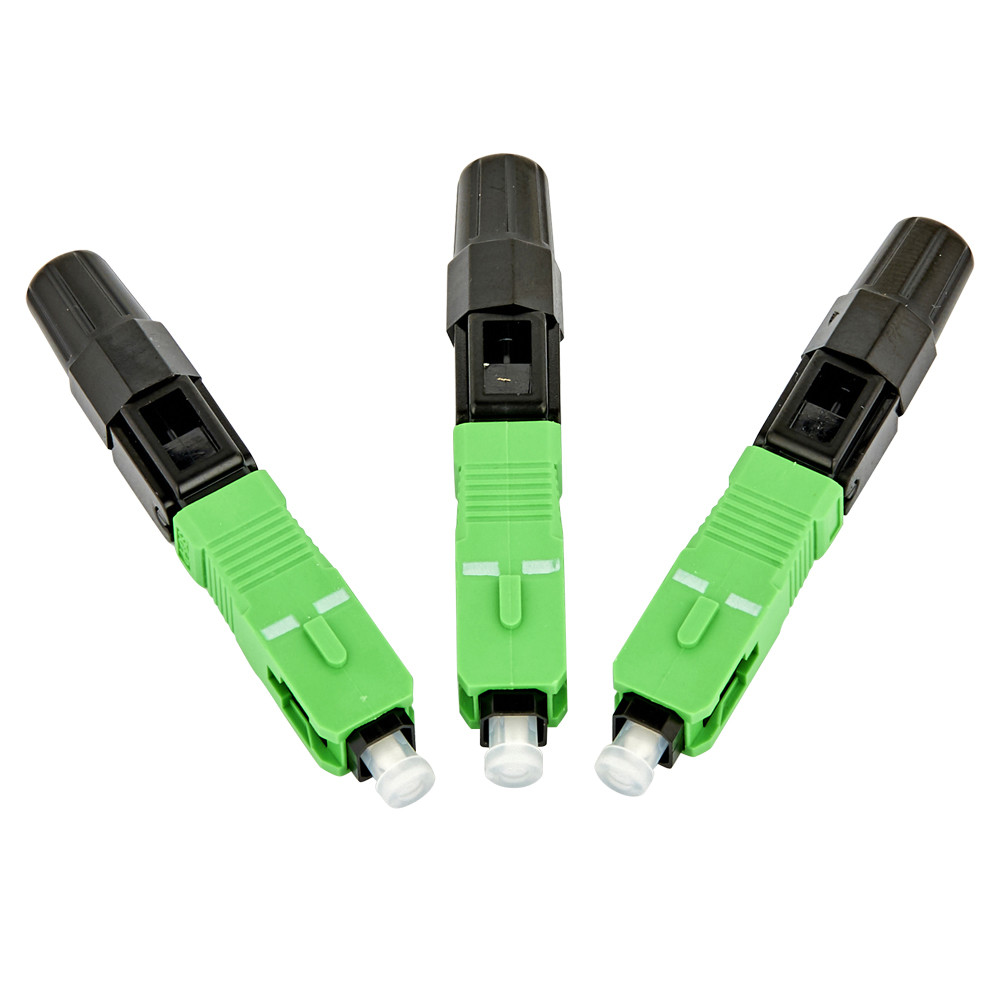

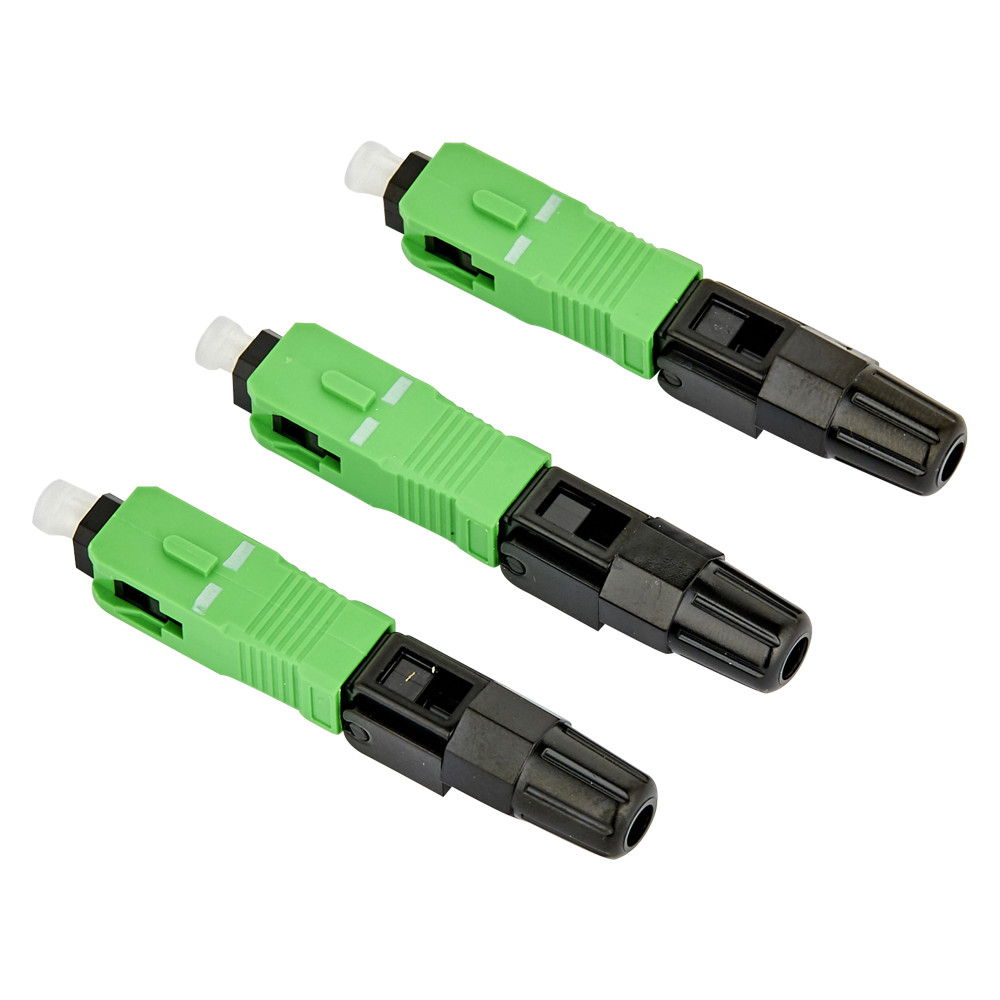

    SC APC Type Optical Quick Assembly Connector For FTTH Fast Connector

    SC APC Type Fast Connect Quick Assembly Connector For FTTH Optic Fast Connector

    Features:

    Quick Assembly SC connector can provide quick and easy terminations of fibers in the field.

    It allows the installer to terminate and make connections in minutes at equipment and fiber patch panels.

    This connector system with features of high installation quality, high success rate, and high reliability.

    Applicable to 2*3,2*1.6 cables.


    SC APC Type Optical Quick Assembly Connector For FTTH Fast ConnectorSC APC Type Optical Quick Assembly Connector For FTTH Fast Connector


    Datasheet:

    Product Features:Type:Technical parameters:Environmental parameters:
    Low insertion lossWith EmbeddedFiber diameter:125μm-900μmOperating temperature:-40℃~85℃
    High return lossInsertion Loss:IL ≤ 0.3 dBlimit ≤ 0.5 dBTemperature cycle:IL change ≤0.3 dB
    High reliability and stabilityReturn loss:RL≥40 dBVibration: IL change ≤ 0.3 dB
    Specifications customized according to customer-specified requirementsTensile strength:F>20NFlooding: IL change ≤ 0.3 dB
    Repeatability: IL change ≤ 0.3dB




    We sincerely invite you to send us an inquiry for further details.

    Junpu Cares About Every Single Details Of The Product For You!
