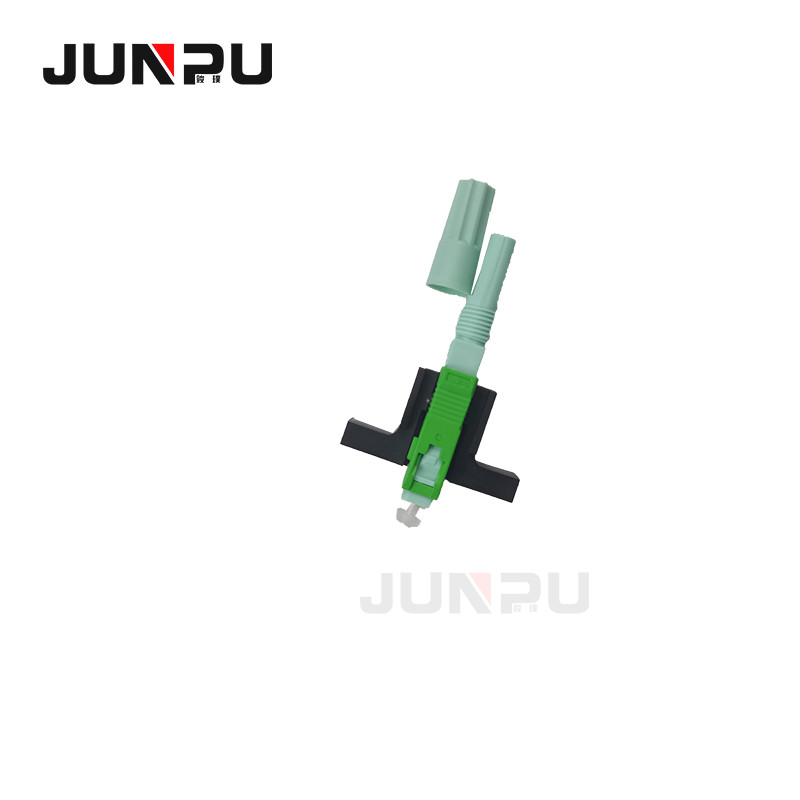

SC APC Green Fiber Optic Sc Connector Quick Assembly For FTTH
Description:
The new generation of fiber optic connections is designed to make
fast and secure fiber optic connections.For installers with and without fiber optic expertise.Ideal for
subscriber connections (FTTH), Data Centers, Security Systems, and
CATV, in any application that is we want to make a secure fiber
optic connection.Connectors with mechanical technology that does
not require professional measuring equipment to verify the
connections.
The installer must use a laser light source and a high-precision
cutter. For assembly, simply insert the stripped fiber optic cable
into the connector, see that the light goes out, and press. You get
a quality and professional result. Waste of Average insertion less
than 0.01 dB. The average return loss of 63dB. Single-mode SC/APC
connector (SM - Single Mode) 9/125.
Product feature:
- Compatible with standard SC connectors;
- Field install-able, cost-effective, user friendly;
- SC, APC, UPC, and LC polishing optional;
- No electricity is required;
- FTTH cable, fiber optic cable optional;
- Reliable durable and superior optical performance.
- Low insertion loss and high return loss.
- Stable capability and high reliability.
- Excellent mechanical capability.
Applications:
- Photoelectric Automatic Control System
- Optical Test Instrument
- CATV
- Image Transmission Networks
- Data Transmission Networks
- Telecommunication Networks
Datasheet:
| Product Features: | Type: | Technical parameters: | Environmental parameters: |
| Low insertion loss | With Embedded | Fiber diameter:125μm-900μm | Operating temperature:-40℃~85℃ |
| High return loss | | Insertion Loss:IL ≤ 0.3 dBlimit ≤ 0.5 dB | Temperature cycle: IL change ≤0.3 dB |
| High reliability and stability | | Return loss: RL≥40 dB | Vibration: IL change ≤ 0.3 dB |
| Specifications customized according to customer-specified
requirements | | Tensile strength: F>20N | Flooding: IL change ≤ 0.3 dB |
| | | Repeatability: IL change ≤ 0.3dB |
More pictures:
FAQ:
Q1: Are you a factory?
A: Yes, we are a factory.
Q2: what's your products' quality control?
1. Control the raw material, manpower allocation, working
environments, equipment, etc.
2. Improve the working standard, cooperation, training of workers,
etc.
Q3: Do you offer a guarantee for the products?
A: Yes, we offer 1-2 years warranty on our products.
Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, and manufacture as requested.
Q5. May I take a sample order
A: Yes, free samples are available and MOQ is 1 piece.
Q6. What about the lead time?
A: Sample takes 3 days, mass production time takes 7-15 days for
bulk order.
Q7. What about the shipment?
A: International Express - DHL, UPS, FedEx, or TNT.
Airline.
Sea/Marine shipping.
We sincerely invite you to send us an inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You!
