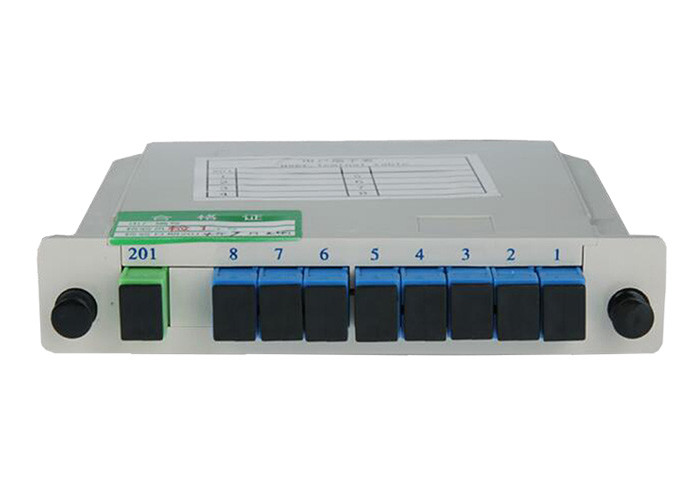

1x8 SC UPC Fiber Optical Cassette PLC Splitter In Fiber Optic Box

Description:

It is mainly used in corridors or outdoor FTTH fiber splitting points. It’s suitable for primary or secondary optical FTTH splitting and has an obvious advantage over secondary optical splitting.

Planar Lightwave Circuit (PLC) Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from the Central Office (CO) to multiple premise locations.

Feature:

• Adopt high-strength stainless steel, pass the salt spray test
• Ferrule core is less than 0.5um
• Adopt 100% new raw material, ROHS compliance
• Low Insertion loss
• Low PDL Compact Design
• Good channel-to-channel uniformity
• Wide Operating Wavelength: from 1260nm to 1650nm
• Wide Operating Temperature: from -40℃ to 85℃.

Application:

Rackmount standard ODF, fiber distribution box, fiber cabinet.

• Fiber to the point (FTTX)
• Fiber to the home (FTTH)
• Passive optical networks(PON, GEPON)
• Local area networks (LAN)
• Cable television (CATV)
• Test equipment

Specification:

Table 1 – 1×N PLC Fiber Splitter

Table 2 – 2×N PLC Fiber Splitter

Notes:

1. Specified without connectors.
2. Add an additional 0.15dB loss per connector
