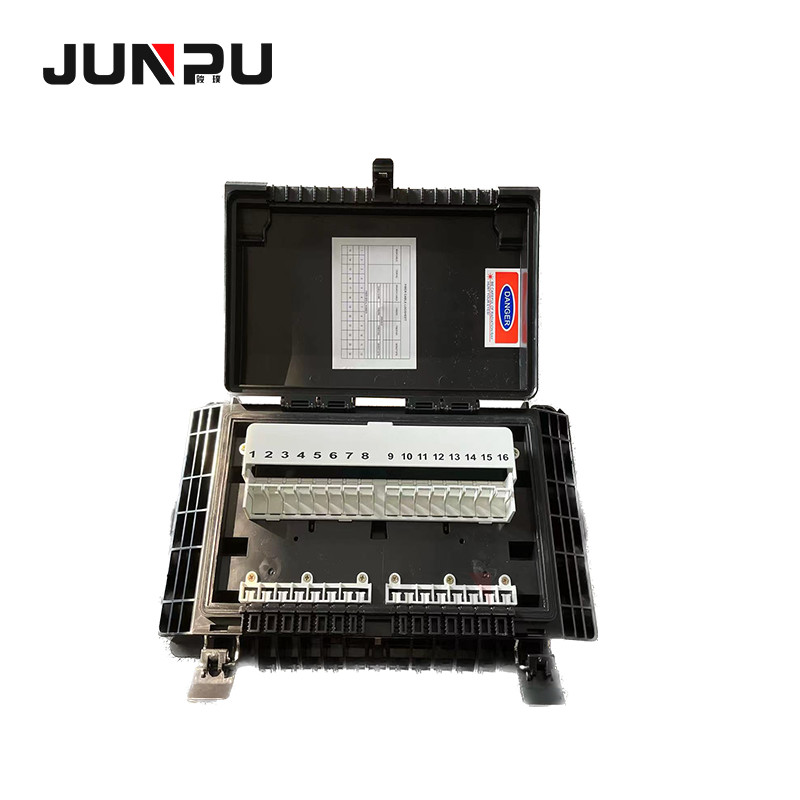

New Style Aerial/Wall-mounting 16 Core Fiber Optic Distribution IP65 Box ​

Products Description

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
8

Feature:

1. Total enclosed structure.
2. Material: PC,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4. Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6. Suitable for bunchy fibers ,Aerial,Wall-mounting

Specification:

1.Environmental requirement

Working temperature:-40℃～+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa～106Kpa

2.Main technical datasheet

Insertion loss:≤0.3dB

UPC return loss:≥50dB

APC return loss:≥60dB

Life of insertion and extraction:＞1000 times

3.Thunder-proof technical datasheet

• The grounding device is isolated with the cabinet, isolation resistance is less than 2x10⁴MΩ/500V(DC);IR≥2x10⁴MΩ/500V
• The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V

Configuration table:

Installation:

Detailed Images

Junpu Fiber Optic Distribution Box Series

About the Company

FAQ:

Q1: Are you a factory?
A: Yes, we are a factory.

Q2: what's your products' quality control?
1. Control the raw material, manpower allocation, working environments, equipment, etc.
2. Improve the working standard, cooperation, training of workers, etc.

Q3: Do you offer a guarantee for the products?
A: Yes, our products offer 1-2 years warranty.

Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, and manufacture as you requested.

Q5. May I take a sample order
A: Yes, free samples are available and MOQ is 1 piece.

Q6. What about the lead time?
A: Sample takes 3 days, mass production time takes 7-15 days for bulk order.

Q7. What about the shipment?
A: International Express - DHL, UPS, FedEx, or TNT.
Airline.
Sea/Marine shipping.

We sincerely invite you to send us an inquiry for further details!
