Factory Price Fiber Optic Joint Box 16 Core Full Equipped
Description:
The equipment is used as a termination point for the feeder cable
to connect with the drop cable in the FTTx communication network
system. The fiber splicing, splitting, and distribution can be done
in this box, and meanwhile, it provides solid protection and
management for the FTTx network building.
Fiber termination box is universally used in telephone,
agricultural telephone network systems, data, and image
transmission systems, CATV cable television series, indoor cable
through force access, and branch connection. A fiber termination
box is available for the distribution and termination connection
for various kinds of fiber optic systems, especially suitable for
mini-network terminal distribution, in which optical cables, patch
cores, or pigtails are connected. In addition to that, a fiber
termination box can be applied to joint fiber pigtails, protect
fiber optic splices and share out the connectivity with individual
customers.
Features:
1. Total enclosed structure.
2. Material: PC+ABS, wet-proof, water-proof, dust-proof,
anti-aging, protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing,
fixation, storage, distribution...etc all in one.
4. Cable, pigtails, and patch cords are running through their own
paths without disturbing each other, micro type PLC splitter
installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed
by the expression port, easy for maintenance and installation.

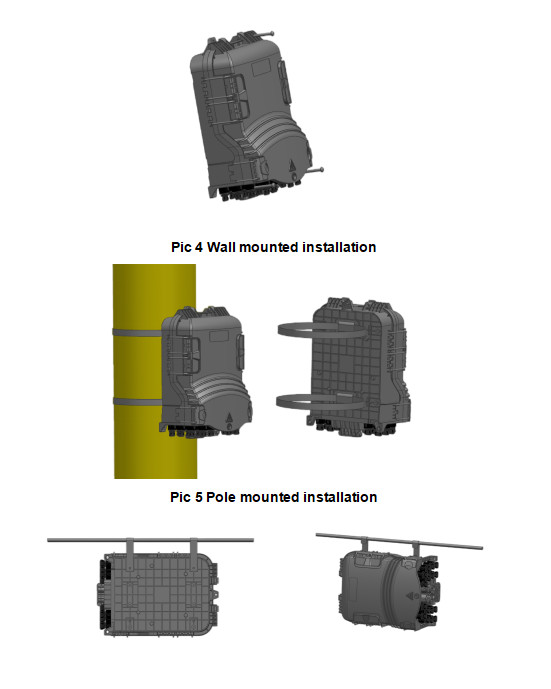

6. Box can be installed by the way of wall-mounted or
poled-mounted, suitable for both indoor and outdoor use.
Application:
1. Optical LAN & WAN & CATV
2. FTTH project & FTTX Deployments
3. Broadband High-bit rate data transmission
4. Active device terminations
5. Testing instruments
6. Optical fiber communication networks
7. PON Networks
8. Optical Signal Distribution
Specification:
1. Environmental requirement
Working temperature: -40℃～+85℃
Relative humidity: ≤85% (+30℃)
Atmospheric pressure: 70KPa~106Kpa
2. Main technical datasheet
Insertion loss: ≤0.15dB
UPC return loss: ≥50dB
APC return loss: ≥60dB
3. Thunder-proof technical datasheet
The insulation resistance between the grounding device and the
metal parts of the box is no less than 2x104MΩ/500V (DC); IR≥2
MΩ/500V.
The voltage resistance between the grounding device, and the box
and its metal parts is no less than 3000V (DC)/min, no puncture, no
flashover; U≥3000V
Product Configuration:
| Model | Size (Pic 1) A*B*C (mm) | Max Capacity | Installation Size (Pic 2) D*E*F(mm) | Into the largest cable diameter (mm) | Maximum size of branch hole (mm) | Waterproof SC/APC adapter |
| 16 CORE | 319.3*214*133 | 48 | 52*166*166 | ᴓ8~14 | ᴓ16 | 16 |
Accessories:
1. Users' Manual*1
2. Accessories Bag*1
3. Pole Ring*2 (Option)
More Picture:
FAQ:
Q1: Are you a factory?
A: Yes, we are a factory.
Q2: what's your products' quality control?
1. Control the raw material, manpower allocation, working
environments, equipment, etc.
2. Improve the working standard, cooperation, training of workers,
etc.
Q3: Do you offer a guarantee for the products?
A: Yes, our products offer 1-2 years warranty.
Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, and manufacture as requested.
Q5. May I take a sample order
A: Yes, free samples are available and MOQ is 1 piece.
Q6. What about the lead time?
A: Sample takes 3 days, mass production time takes 7-15 days for
bulk order.
Q7. What about the shipment?
A: International Express - DHL, UPS, FedEx, or TNT.
Airline.
Sea/Marine shipping.
Our company:
Junpu Fiber Optic Distribution Box Series
We sincerely invite you to send us an inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You!
