FTTH 1x2 1x4 1x8 1x16 Fiber Cassette Optical PLC Splitter Cassette
Plug-in
Description:
This is a professional fiber splitter, which can distribute the
light energy of a single fiber to 8 fibers according to a given
ratio, or combine the light energy of multiple fibers into a single
fiber

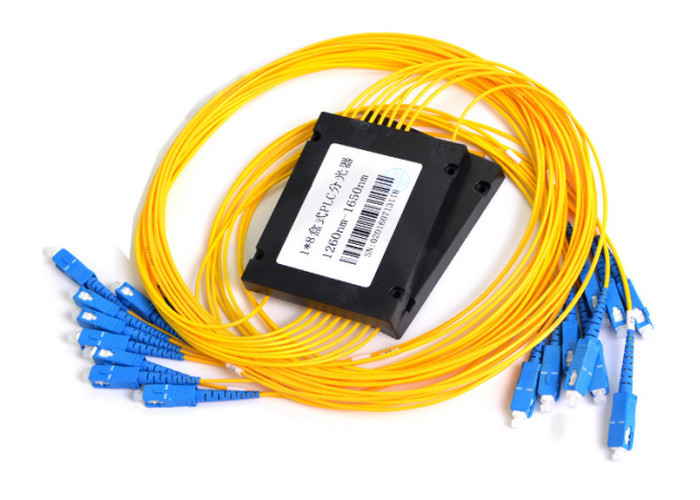

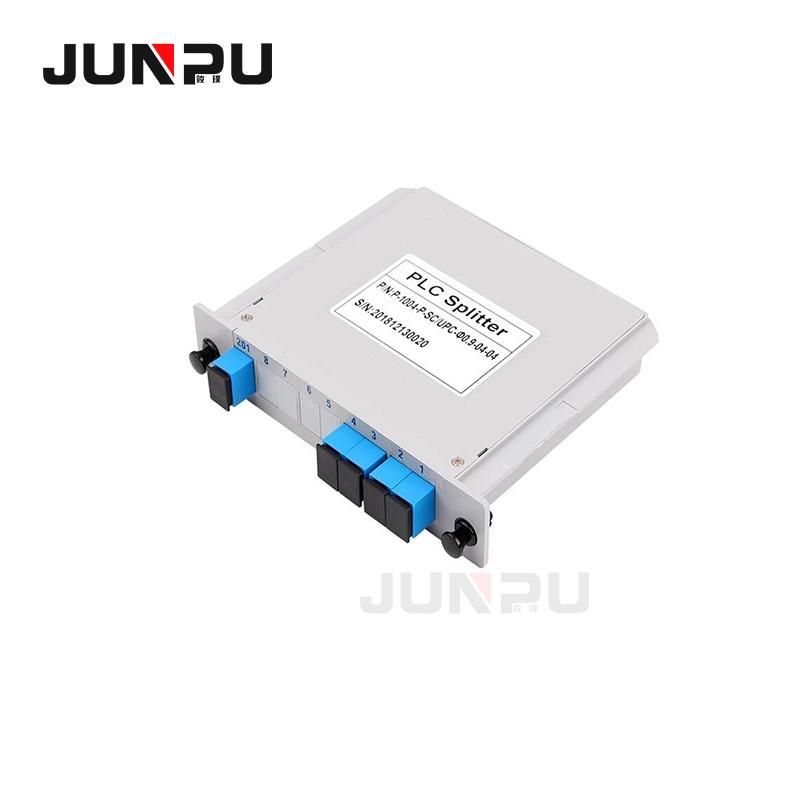

1x8 insert type PLC Splitter. The interface type is SC/APC, fast
and practical. Applicable to home wiring, engineering projects,
corporate companies, fiber optic LAN.
Full fiber optic structure, good environmental stability, compact
structure, small size, can be installed in various existing
transfer boxes, No need to leave a lot of installation space
Before aligning the coupler, the waveguide must be cleaned and
carefully installed on the waveguide frame, then the fiber is
cleaned, one end is installed on the precision adjustment frame at
the incident end, and the other end is connected to the light
source
Features
- Various coupling ratio
- Single mode and multi mode available
- Low insertion loss, low PDL
- Environmental stable
- Industry standard and custom housing available
- Variety of connectors available
- 1x2, 1x4 and 1x n customized couplers configuration available
Applications:
- 1. Fiber Optical Communication Systems
- 2. Optical Fiber CATV
- 3. Passive Optical Network (PON)
- 4. Fiber Optic Amplifiers
- 5. Fiber Optic Access Networks/LAN
- 6. Monitoring Systems
- 7. Optical Fiber Sensor
Specification:
Table 1 – 1×N PLC Fiber Splitter
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260～1650 |
| Fiber Type | G657A or customer specified |
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 |
| Storage Temperature (℃) | -40～85 |
| Package | Steel Tube or ABS |
Table 2 – 2×N PLC Fiber Splitter
| Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
| Operating Wavelength (nm) | 1260～1650 |
| Fiber Type | G657A or customer specified |
| Insertion Loss (dB) | 4.0 | 7.6 | 11.0 | 14.4 | 17.5 | 21.0 |
| Loss Uniformity (dB) | 0.6 | 1.0 | 1.2 | 1.5 | 1.8 | 2.2 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 |
| Storage Temperature (℃) | -40～85 |
| Package | Steel Tube or ABS |
Notes:
- Specified without connectors.
- Add an additional 0.15dB loss per connector
