1GE+1FE+WIFI HGU Fiber Optic Gpon FTTH ONU
Description

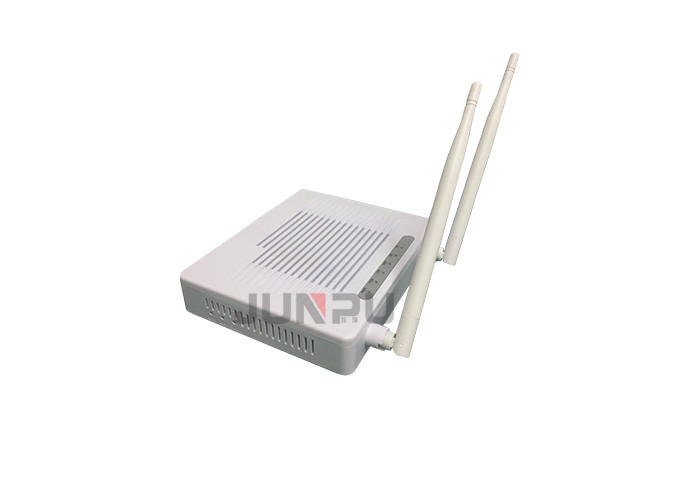

JP3202W is 1GE+1FE+WIFI XPON(GPON and EPON dual mode) HGU ONU. It
is designed for meeting the triple-play service needs of fixed
network operators or cable operators, and widely used in FTTO
(office), FTTD (desk), FTTH (home) broadband access and CATV, video
surveillance and other requirements. It is based on mature GPON and
Gigabit EPON technology, and has high ratio of performance to
price, stable, cost-effective, high reliability, easy management,
configuration flexibility and good quality of service (QoS)
guarantees. It is fully compliant with GPON and EPON technical
regulations such as ITU-T G.984.x, IEEE802.3ah and technical
requirement of GPON/EPON Equipment from China Telecom. Dual mode
ONU can automatically detect OLT and switch PON mode, it can be
used as GPON or EPON.
It can also be applied to a wide temperature environment, and also
has a firewall function.
2.Features:
2.1 HGU ONU, bridging and routing modes can be set
2.2 Dual mode ONU compatible with popular EPON and GPON OLT
2.3 Support loop detection, IGMP, IGMP snooping
2.4 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service
2.5 Support port speed, support for storm suppression
2.6 Support 802.11n 2T2R speed up to 300Mbps
2.7 Support No-auth, WEP, WPA-PSK and WPA2-PSK.
2.8 Triple Solution Data, Voip and Cable TV(RF
bandwidth:45~1000MHz, AGC function)
2.9 Support Telnet, CLI, OMCI/OAM and Web management
2.10 Support NAT, Firewall function
2.11 Support remote software upgrade
3.Technical parameters
| Items | Unit | Specifications |
| PON standard. | | EPON IEEE802.3ah, GPON ITU-T G.984.x |
| Optical interface | | SC/PC connector,1 GPON/EPON interface(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm Transmitting optical power: 0～+4dBm Transmission distance: 20KM |
| Speed | Gbps | GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps |
| Wavelength | nm | Tx1310, Rx 1490, |
| Interface | data | 1FE 10/100Mbps 1GE 10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45
connectors |
| Wireless | Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R 2 external antenna |
| Indicator | LED | PWR, PON, LOS, WiFi, GE, FE |
| Operating condition | ℃ | Operating temp: -5 ~ +55 |
| Storing condition | ℃ | Storing temp: -30 ~ +60 |
| Humidity | % | 10~90(non-condensing) |
| Power supply | V | DC 12V,0.5A adapter |
| Power consumption | W | ≤6 |
| Dimension | mm | 140mm×116mm×34mm(L×W×H) |
| Net weight | Kg | 0.3 |
