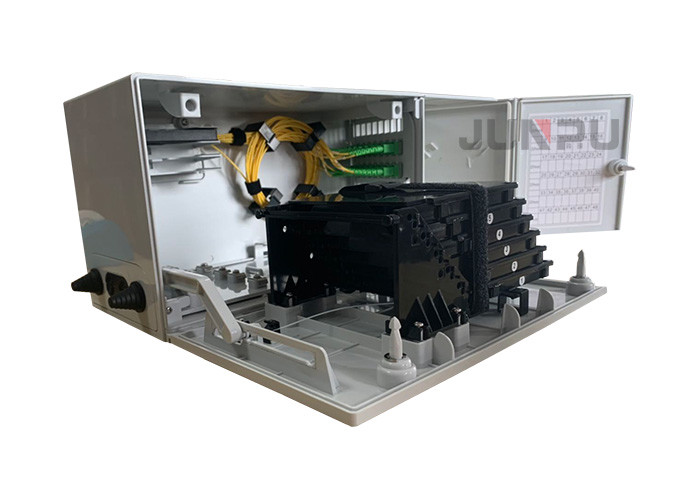

Fiber Optic Distribution Box cabinet 48 core Ftth Floor Termination
Box ISP
Application:
1. Telecommunication area.
2. Internet service.
3. Data center, CATV
4. FTTH
Features:
l Multi-operator cabinet with six trays and capacity for 48 fibers.
l Allow the connection between multiple operators and clients,
allows the connection through panels or directly by splices.
l The flexible side entrance that allows to stack several boxes and
an oval entrance that facilitates the bleeding of the cable. Fire
resistant that allows splicing, patching, dividing or storing
optical fibers, equipped with an 8mm male triangular closing
wrench.
l It has a central area to organize the fibers which is protected
with a main door.
l It has compartments separated by a distribution panel of up to 48
optical fibers and allows the installation of the cables by means
of fusion or direct connection.
l Possibility of scalability according to the number of operators
that address the building
l Standardized dimensions, according to the recommendations of
TELEFÓNICA, approved for the main operators.
Specification:
| Dimension | 450x180x150mm |
| Net Weight | 3.2kg |
| Splice tray | 6pcs |
| Max Capacity | 48core |
| Adapter Plate Capacity | 48 SC Simplex |
| Dividers | Max 4pcs 1:16 Splitter |
| Color | Grey RAL 7035 |
| Working Temperature | -25°C - 60°C (5 to 95% relative humidity) |
Accessories:
1. 1x Installation Manuel
2. 3x300mm cable tie
3. 24x100mm plastic cable tie
4. 1x wall fixing kit
5. 48x fiber splice protector
6. 1mx fiber protect tube.
7. 1x Triangular Key
FAQ:
Q1: Are you a factory?
A: Yes, we are a factory.
Q2: what's your products' quality control?
1.Control the raw material,manpower allocation,working
environments,equipment etc.
2.Improve the working standard ,cooperation ,training of workers
etc.
Q3: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, manufacture as per your
request.
Q5. May I take a sample order
A: Yes, free sample are available and MOQ is 1 piece.
Q6. What about the lead time?
A:Sample takes 3 days, mass production time takes 7-15 days for
bulk order.
Q7. What about the shippment ?
A: International Express - DHL, UPS, FedEx or TNT.
Airline.
Sea/Marine shipping.
Junpu Fiber Optic Distribution Box Series
We sincerely invite you to send us inquir for further details.
Junpu Cares About Every Single Details Of The Product For You !
